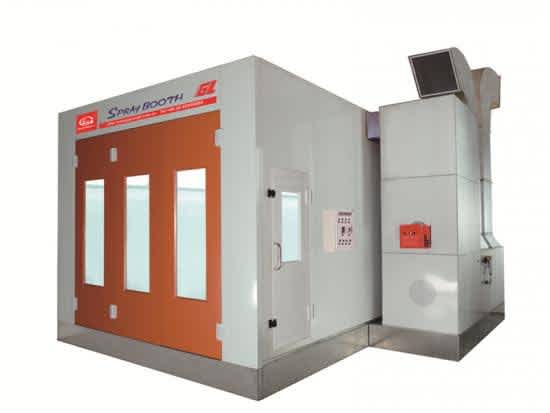

Spray booth

₦27,000,000

outside dimension 7000×5350×3400mm(L×W×H) Inside dimension 6900×3900×2700mm(L×W×H) Maindoor 3fold,3000×2600mm(W×H),Aluminum alloy door Wallpanel Thickness:50mm, EPSheat preservation panel,tongue and groove Structure.with 0.376mm color plate. Intake air system. 7.5KWTURBOFAN,total air capacity: 25000m³/h Exhaust system 1pc of 7.5/5.5kw TURBOFAN. Flow capacity:25000/20000m³/h Heating system Original Italy RIELLOG20burner, Stainless steel high efficient heat exchangers Maximum calorific value:200000kcal/h. AutomaticDamper MotorVoltage 420V/50HZ/3PH Totalpower16.5kw.
